Qysea

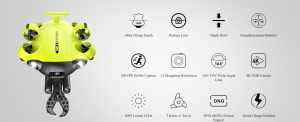

FIFISH V6S

FIFISH V6S

The Qysea Fifish V6 underwater drone’s most outstanding feature is its form. This underwater drone is designed to look like a fish and is true to its name in terms of shape. As a result, you can anticipate the most natural and seamless swimming possible, similar to a fish! The tiny ROV is one of a kind underwater drone that allows you to go above and beyond to study the subaquatic environment. From above the water, the bright yellow colour of the drone makes it easy to spot.

The V6S has a port for add-on payloads and tool. It also has a small but powerful robotic arm delivers a clamping and towing force of 100N, with the capability to retrieve large and heavy objects that is beneficial in a wide range of applications

Physical Specifications
Performance specifications
– Dimension 383 mm*331 mm*143 mm (15 in*13 in*5 5/8 in)
– Weight 3.9 kg (8 5/8 lbs)
– Maximum depth: 100m (328ft)
– Maximum tether length 300m (Current tethers 100m & 200M)
– Maximum 3 knots (1.5 m/s) in still water

– Thrusters 6 (4*Vector + 2*Horizontal)
– Maneuverability 6 DOF (Degree of Freedom):
– Posture Lock™ [1] Able to lock the ± 0.1° pitch angle or ± 0.1° roll angle and moving in any direction (See note 1)
– Hovering Accuracy Able to keep the ROV suspending in ± 1 cm
– LED brightness: 4000lm

– 100N clamping force, with clamp lock function

– 100N towing force

– Battery Life: Up to 6 hours

Camera Specifications
Sensors
– Video Resolution: 4K UHD: 25/30 fps
1080P FHD: 25/30/50/60/100/120 fps
720P HD: 25/30/50/60/100/120/200/240 fps
– Video Format MPEG4- AVC/H.264, HEVC/H.265
– Stabilization EIS (Electronic Image Stabilization)
– Photo Resolution 4:3: 4000 x 3000
– Photo Format JPEG, DNG
– Burst shooting 1 / 3 / 5 / 7 / 10 frames
Features: Excellent color rendition, high dynamic range, optimized for low-light underwater,
wide angle field-of-view
– IMU: 3-axis magnetometer, 3-axis gyro, 3-axis accelerometer
– Depth / temperature: 1cm-resolution depth sensor with temperature calibration and display
– Other: Internal barometer, battery meter



If you have an expedition that requires an underwater ROUV, and would like to know if Michael is available to participate, please send your request along with the details of the expedition to underwaterrovs@michael-girard.com
